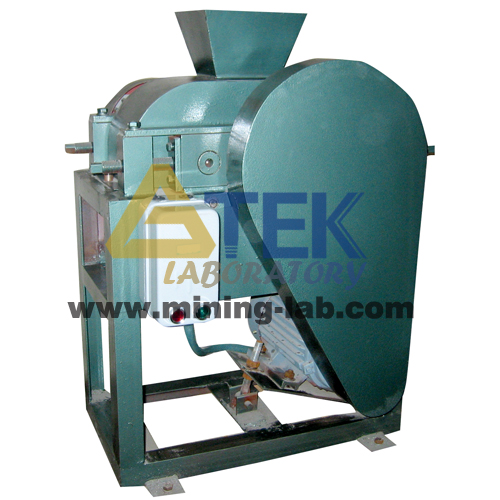

Laboratory Dual Roll Crusher / Laboratory Double Roll Breaker / Laboratory Double Roll Crushing Machine

Description

GTEK Laboratory Double Roll Crusher is designed for intermediate crushing of medium hard materials such as coal, coke, limestone, phosphosiderite, sulfur ore and coal gangue. Double roll crusher is widely used in laboratory of mining, metallurgical, coal, construction industry and etc.

Advantages

1. Efficient for crushing of materials with moisture content less than 15%;
2. Even final particles, no flaky and sticky materials;
3. Excellent design and easy operation.

Technical Specification

Specification of Laboratory Double Roll Crusher

Model	Roll Size (mm)	Max. Feed Size (mm)	Discharge Size (mm)	Capacity (kg/hr)	Dimensions (mm)	Motor Power (kW)	Weight (kg)
XPC200×75	Φ200×75	10	0-4	860	600×460×880	1.5	200
XPC200×125	Φ200×125	10	0-4	1500	780×660×574	3	315
XPC200×150	Φ200×150	10	0-4	1500	780×660×574	3	350
XPC250×400	Φ250×400	20-32	2-3	5000-10000	1430×1460×816	11	1300
